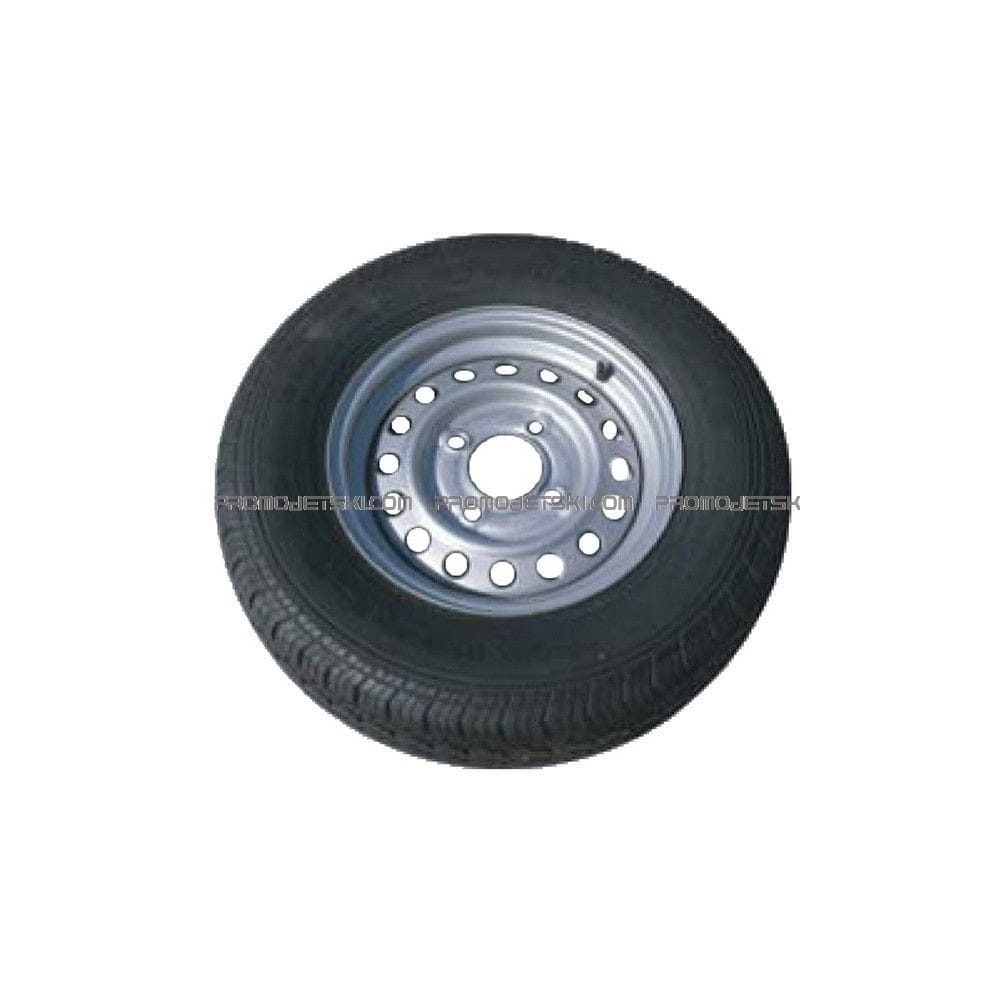

Complete CBS wheel (tire mounted on 13" rim)

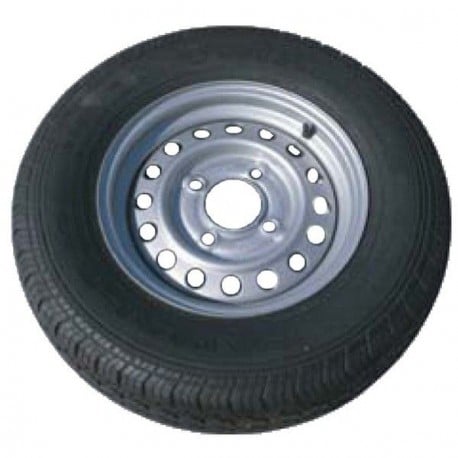

Complete wheel in 13" from CBS Remorque

Reference: 1023 / 1037 / 1039 / 1004 / 1005

- reference: 1023 (for CBS J490 / J570 / MM560S trailer)
The complete 155/70 R13 wheel supports a minimum load of 387 kg.
Our complete 155/70 R13 wheels have a maximum speed rating of 180 km/h.
Our complete 155/70 R13 wheel is equipped with a 13 inch rim with a drilling distance of 130 mm for 4 holes.
The offset of our complete 155/70 R13 wheel is 20 mm.
Pressure: 2.5 bars

- reference: 1037 (for CBS MM560+ trailer)
Complete wheel 155/80R13 for MM560S+
This completed 155/80 R13 wheel has a center distance of 100 for 4 holes.
The complete 155/80 R13 wheel supports a minimum load of 500 kg.
Our complete 155/80 R13 wheels have a minimum speed rating of 130 km/h.
Our complete 155/80 R13 wheel is equipped with a 13 inch rim with a drilling distance of 100 mm for 4 holes.
The offset of our complete 155/80 R13 wheel is 20 mm.
Pressure: 2.5 bars

- reference: 1039 (other mounting possible depending on the year)
- Complete wheel 135/80 R13
This complete 135/80R13 wheel has a center distance of 115 mm for 4 holes.
The complete 135/80R13 wheel supports a minimum load of 325 kg.
Our complete 135/80R13 wheels have a minimum speed rating of 130 km/h.
Our complete 135/80R13 wheel is equipped with a 13 inch rim with a drilling distance of 115 mm for 4 holes.
The offset of our complete 135/80R13 wheel is 0 mm.
Pressure: 2.4 bars

- References: 1004 (for T3 Plus trailer manufactured)

The complete 145/70R13 wheel supports a minimum load of 345 kg.
Our complete 145/70R13 wheels have a minimum speed rating of 130 km/h.
Our complete 145/70R13 wheel is equipped with a 13 inch rim with a drilling distance of 130 mm for 4 holes.
The offset of our complete 145/70R13 wheel is 0 mm.
Pressure: 2.5 bars
