Individual seals for Yam. 1000 (FX140) View larger

Individual gaskets for Yamaha 1000 (FX140)

Individual and adaptable WSM or SBT gaskets (depending on availability) .. More details

15 Items

Customer's reviews for this product : (voir)
1 customer review
5/5
Reference to select
Disponibility
QT.
Price
  • Individual gaskets for Yamaha 1000 (FX140) 007-593-04
    Reference to select : 007-593-04
    Made to order, theoretically deliverable within 2 to 10 days
    22,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-593-05
    Reference to select : 007-593-05
    Made to order, theoretically deliverable within 2 to 10 days
    84,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-594
    Reference to select : 007-594
    Made to order, theoretically deliverable within 2 to 10 days
    39,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-594-01
    Reference to select : 007-594-01
    Made to order, theoretically deliverable within 2 to 10 days
    33,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-594-02
    Reference to select : 007-594-02
    Made to order, theoretically deliverable within 2 to 10 days
    39,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-594-03
    Reference to select : 007-594-03
    Made to order, theoretically deliverable within 2 to 10 days
    3,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-597
    Reference to select : 007-597
    In stock : 2
    2,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-597-03
    Reference to select : 007-597-03
    In stock : 1
    19,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 007-597-10
    Reference to select : 007-597-10
    Made to order, theoretically deliverable within 2 to 10 days
    11,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-418-01
    Reference to select : 008-418-01
    In stock : 2
    18,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-02
    Reference to select : 008-683-02
    Made to order, theoretically deliverable within 2 to 10 days
    9,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-03
    Reference to select : 008-683-03
    Made to order, theoretically deliverable within 2 to 10 days
    14,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-04
    Reference to select : 008-683-04
    Made to order, theoretically deliverable within 2 to 10 days
    12,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-06
    Reference to select : 008-683-06
    Made to order, theoretically deliverable within 2 to 10 days
    3,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-07
    Reference to select : 008-683-07
    In stock : 3
    3,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-09
    Reference to select : 008-683-09
    Made to order, theoretically deliverable within 2 to 10 days
    5,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-10
    Reference to select : 008-683-10
    Made to order, theoretically deliverable within 2 to 10 days
    17,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-683-19
    Reference to select : 008-683-19
    Made to order, theoretically deliverable within 2 to 10 days
    2,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-689-02
    Reference to select : 008-689-02
    Made to order, theoretically deliverable within 2 to 10 days
    2,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-689-09
    Reference to select : 008-689-09
    Made to order, theoretically deliverable within 2 to 10 days
    18,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-689-10
    Reference to select : 008-689-10
    Made to order, theoretically deliverable within 2 to 10 days
    71,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-692
    Reference to select : 008-692
    Made to order, theoretically deliverable within 2 to 10 days
    2,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 008-692-01
    Reference to select : 008-692-01
    Made to order, theoretically deliverable within 2 to 10 days
    5,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 009-702-05J
    Reference to select : 009-702-05J
    In stock : 2
    16,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 009-791
    Reference to select : 009-791
    In stock : 1
    8,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 010-051
    Reference to select : 010-051
    In stock : 2
    3,95€ tax incl.
  • Individual gaskets for Yamaha 1000 (FX140) 010-052
    Reference to select : 010-052
    In stock : 2
    3,95€ tax incl.

More info

Individual and adaptable WSM or SBT gaskets (depending on availability) for YAMAHA 4-stroke 1000cc jet skis (FX from 2005-2008), (FX140 from 2002-2004) and (FX Cruiser 2003-2008)

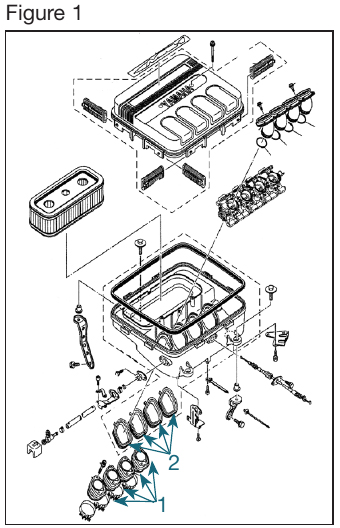

Original reference reference to select DESCRIPTION Figure No. Number on the image Recommended quantity
60E-14239-00-00 008-683-02 Muffler Socket Box Gasket 1 2 4
93210-18417-00 008-692 Pipe Ring 2 1 1

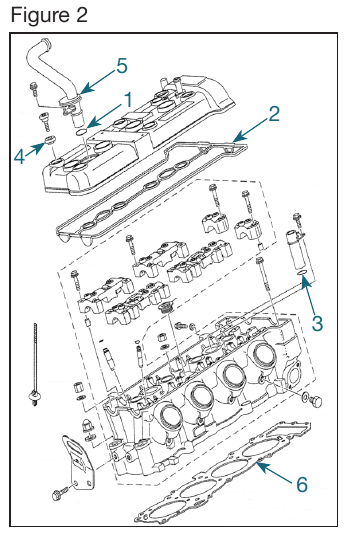

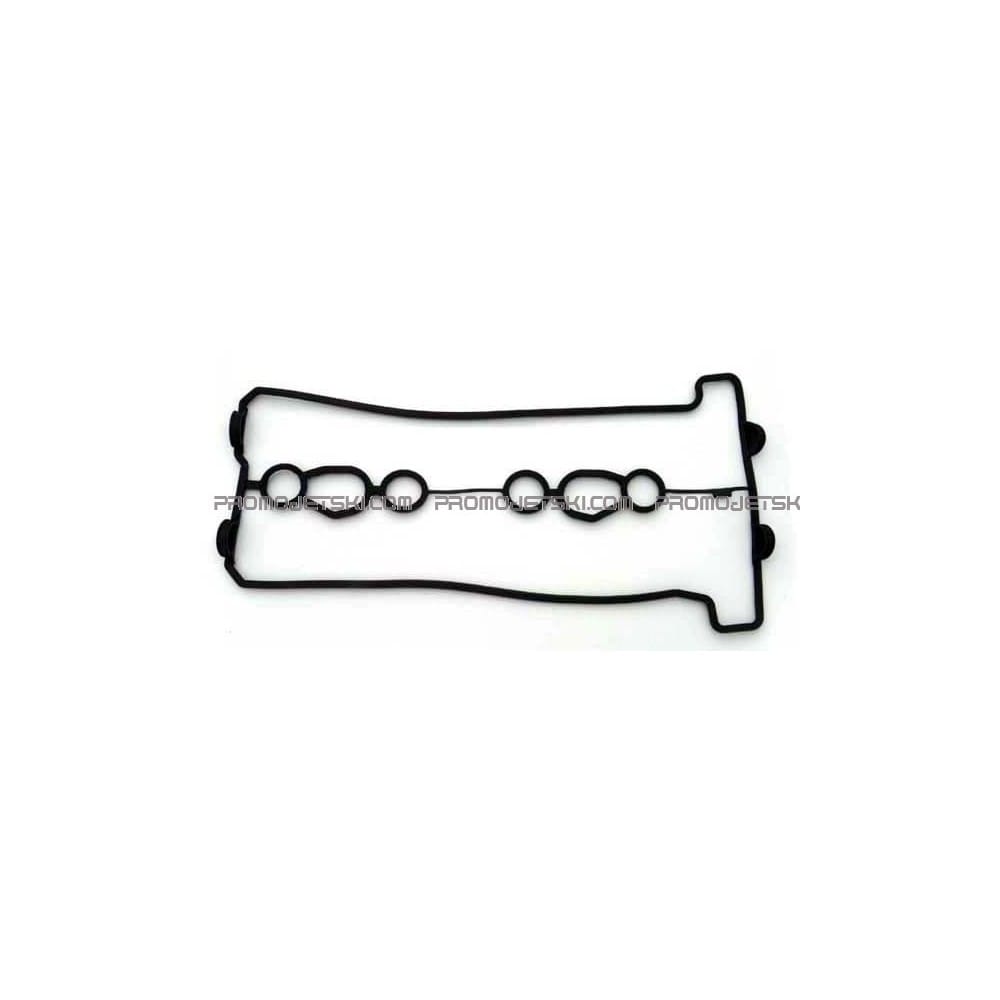

60E-11193-01-00 007-593-04 Main Cover Trim 2 2 1
93210-18417-00 008-692 Pipe Ring 2 3 1

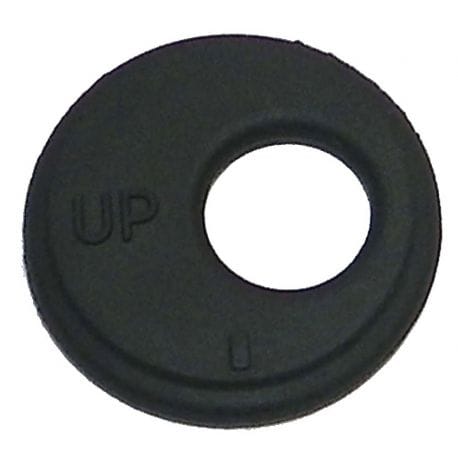

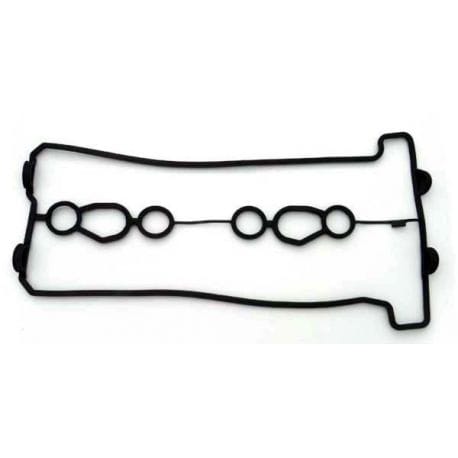

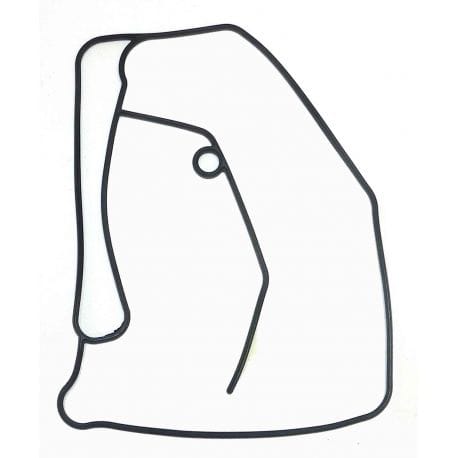

4kg-1111g-00-00 009-791 The valve cover maintains the seal. 2 4 6
60E-12494-00-00 008-683-09 Pipe Joint 2 5 1

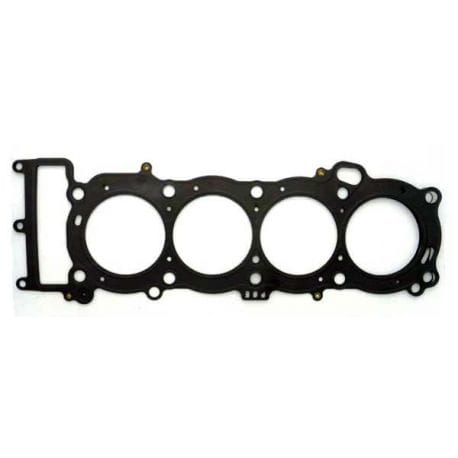

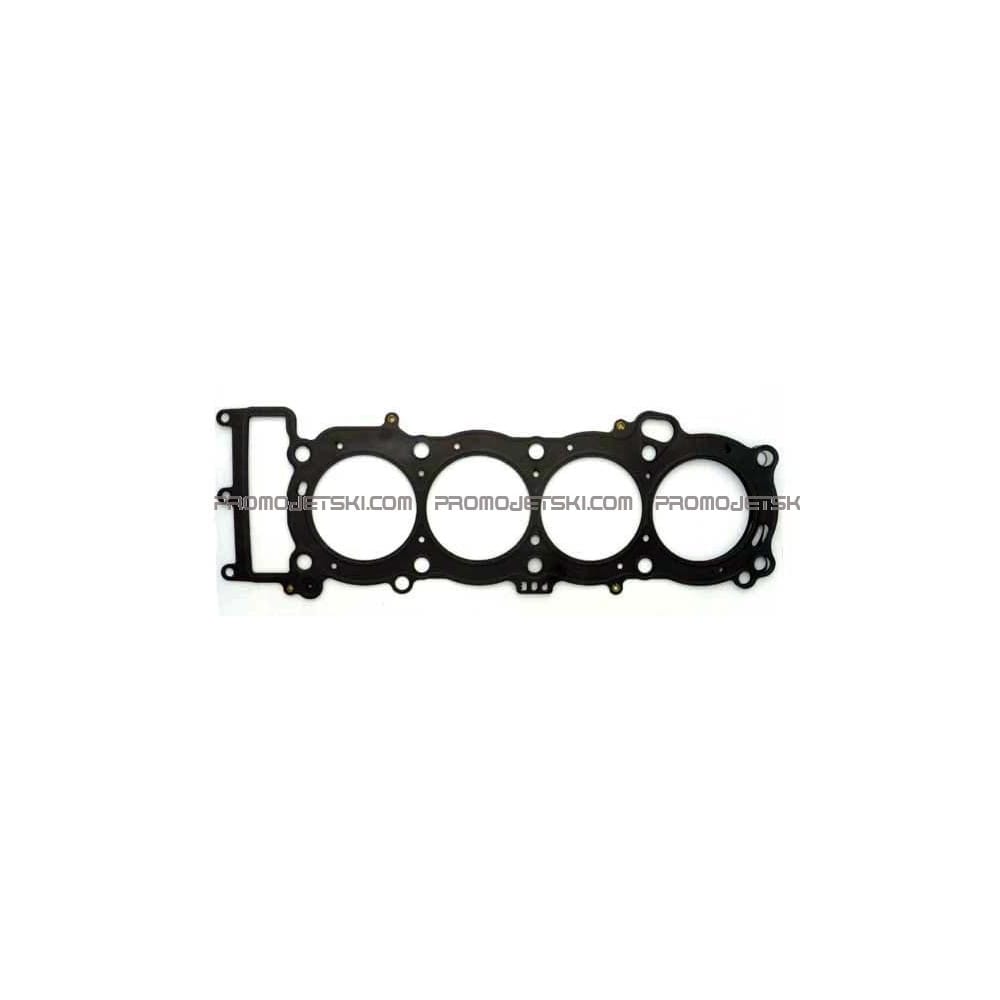

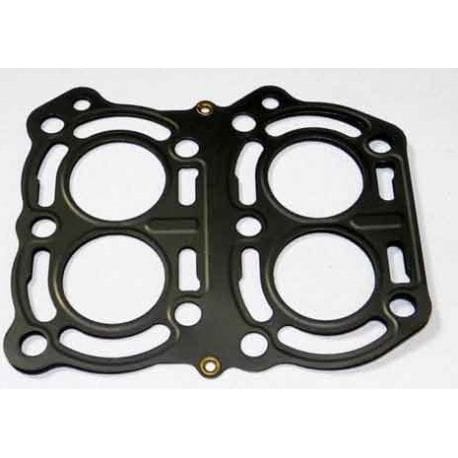

60E-11181-01-00 007-593-05 Cylinder Head Gasket 2 6 1
Original reference reference to selectdescription Figure No.Number on the imageRecommended quantity

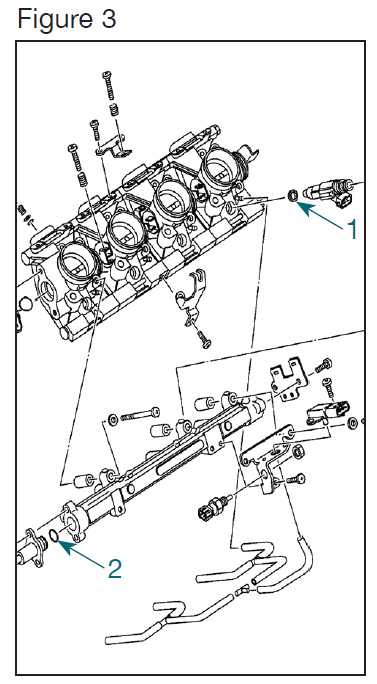

90430-09002-00 008-683-07 Fuel Injector Seal 3 1 4

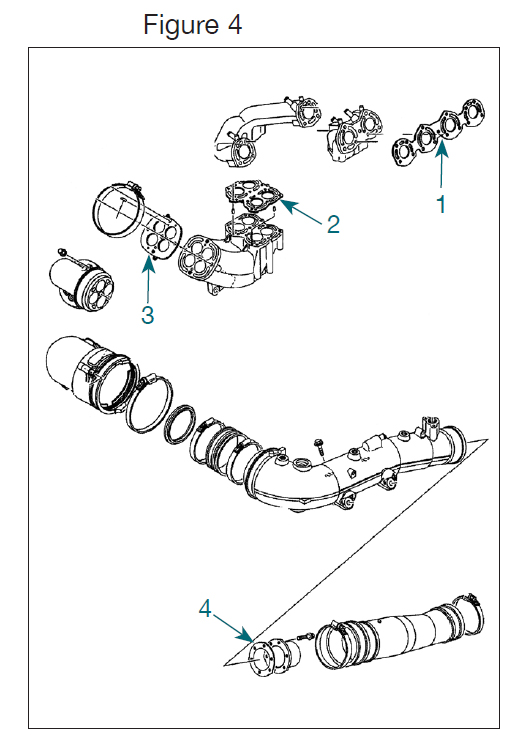

60E-14613-00-00 007-594 Exhaust Pipe Trim 4 1 1
60E-14739-01-00 007-594-01 Dampner #1 Exhaust Silencer 4 2 1
60E-14749-01-00 007-594-02 Dampner #2 Exhaust Silencer 4 3 1
60E-14623-00 007-594-03 Exhaust Pipe Fitting 4 4 1
Original reference reference to selectdescription Figure No.Number on the imageRecommended quantity

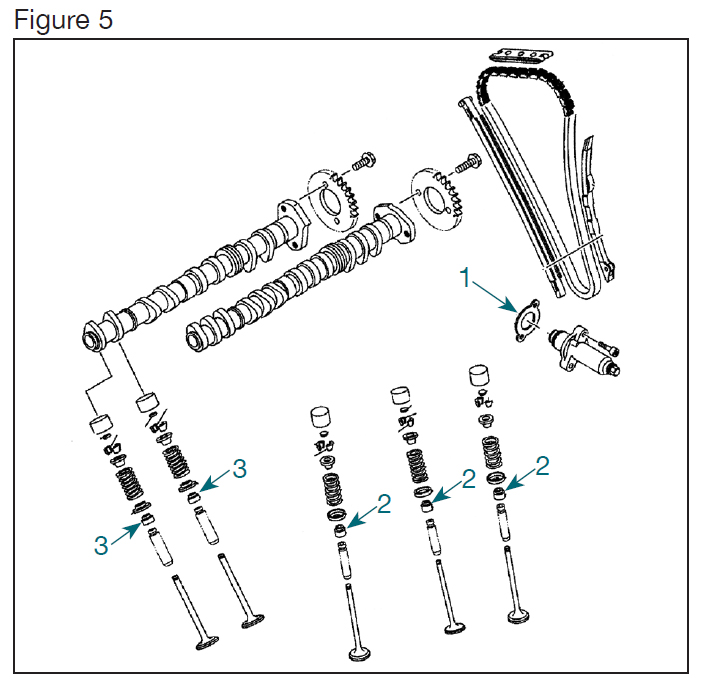

4fm-12213-00-00 007-597 Tensioner Chain Trim 5 1 1

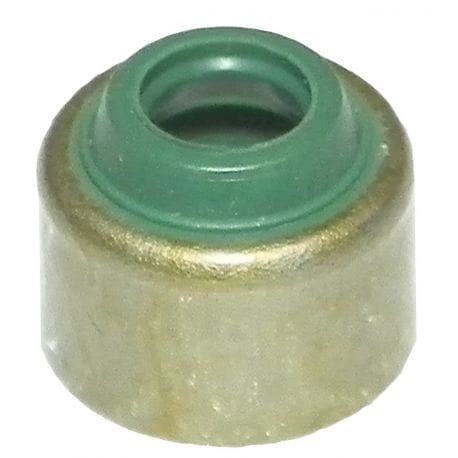

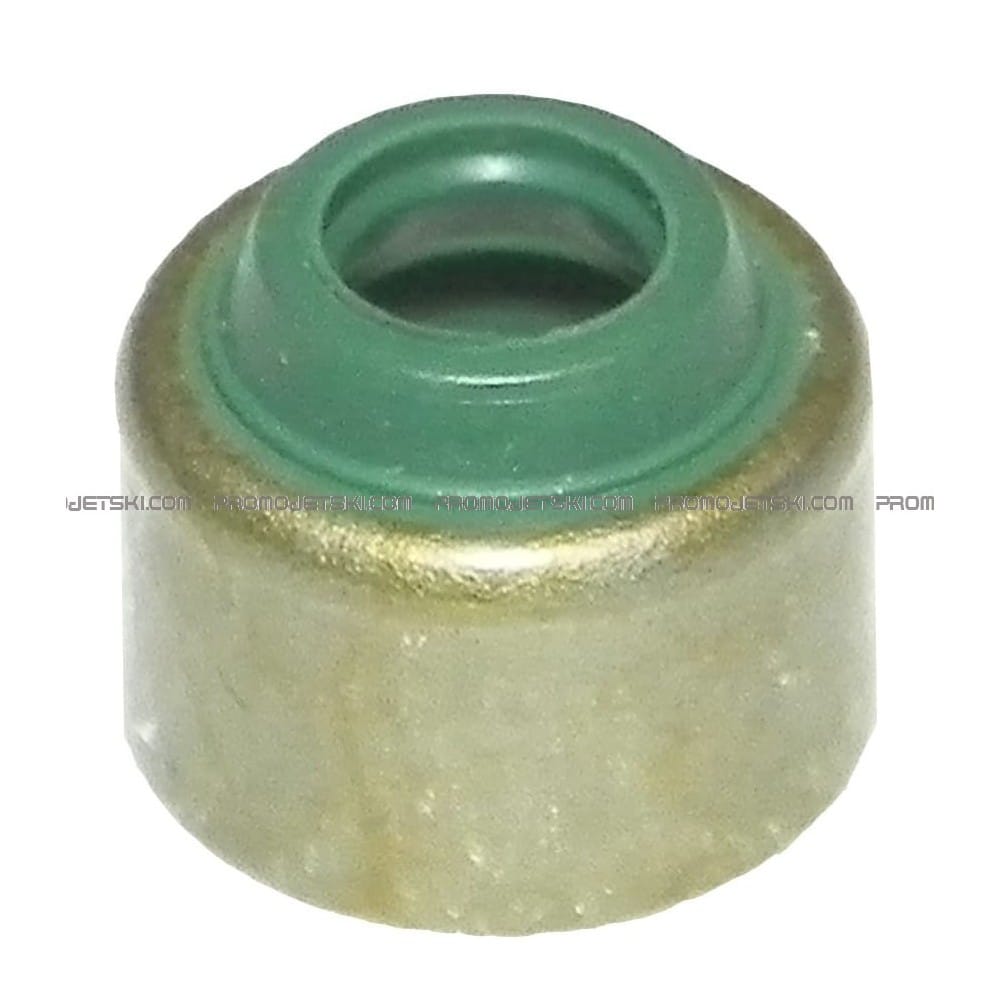

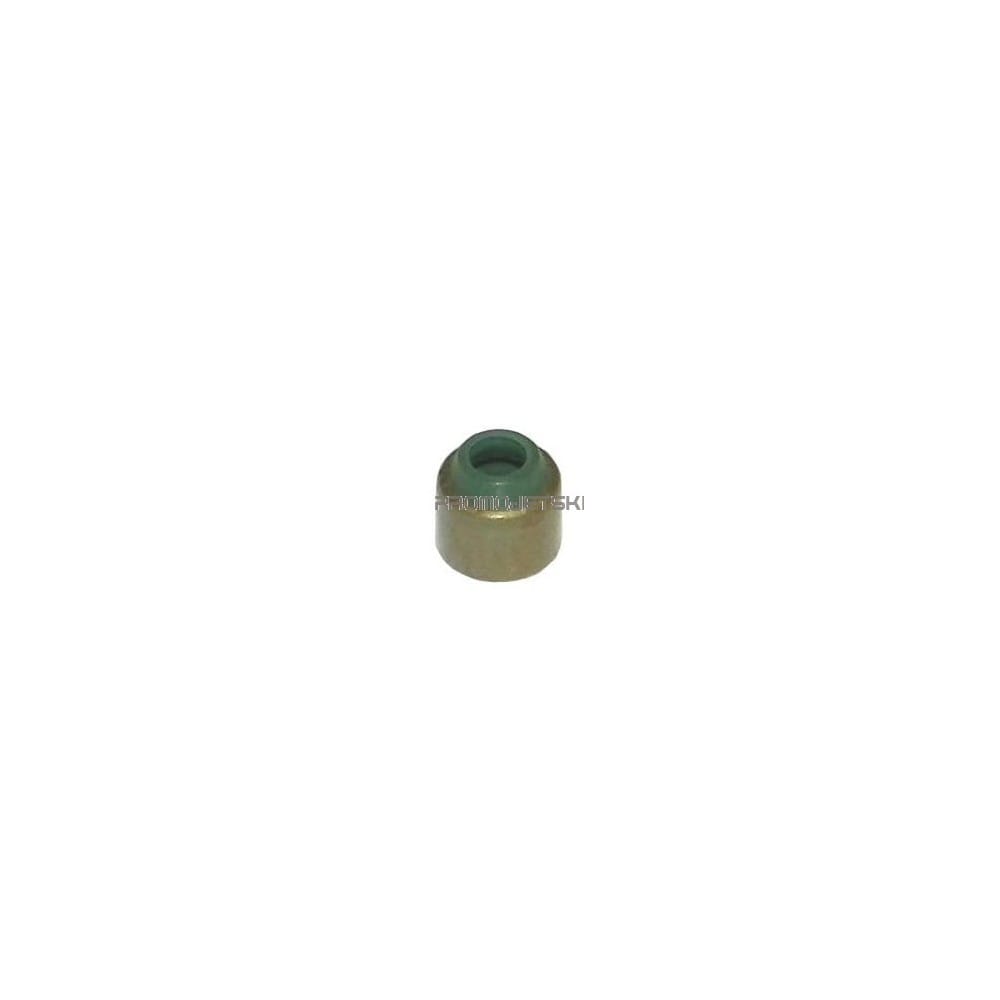

4tv-12119-00-00 010-051 Valve Stem Seal 5 2 12
4sv-12119-00-00 010-052 Exhaust Valve Stem Seal 5 3 8

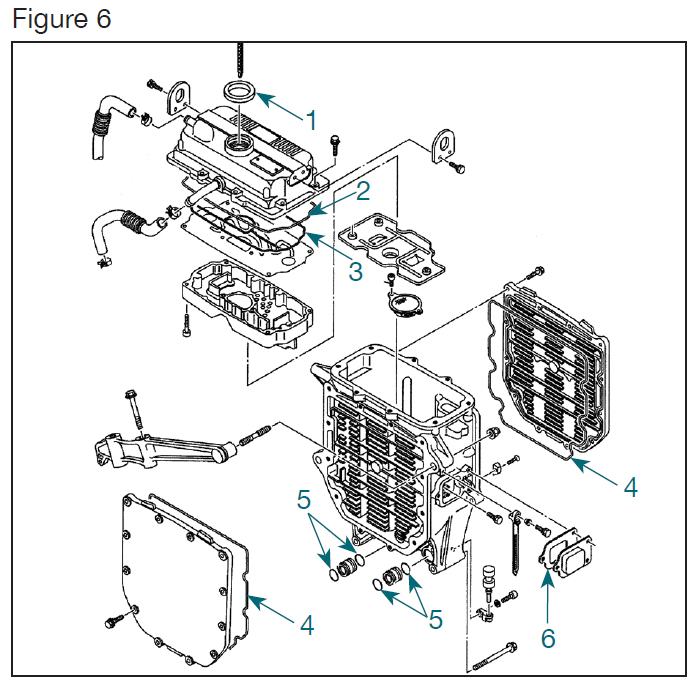

60E-13473-00-00 008-692-01 Dive Stick Ring 6 1 1
60E-13477-00-00 008-689-09 Oil Radiator Ring 6 2 1
60E-13475-00-00 007-597-03 Oil Radiator Gasket 6 3 1
60E-13476-00-00 008-689-10 Oil Radiator Ring 6 4 2
93210-18322-00 008-689-02 Oil Radiator Ring 6 5 4
60E-13567-00-00 007-597-10 Oil Radiator Gasket 6 6 1

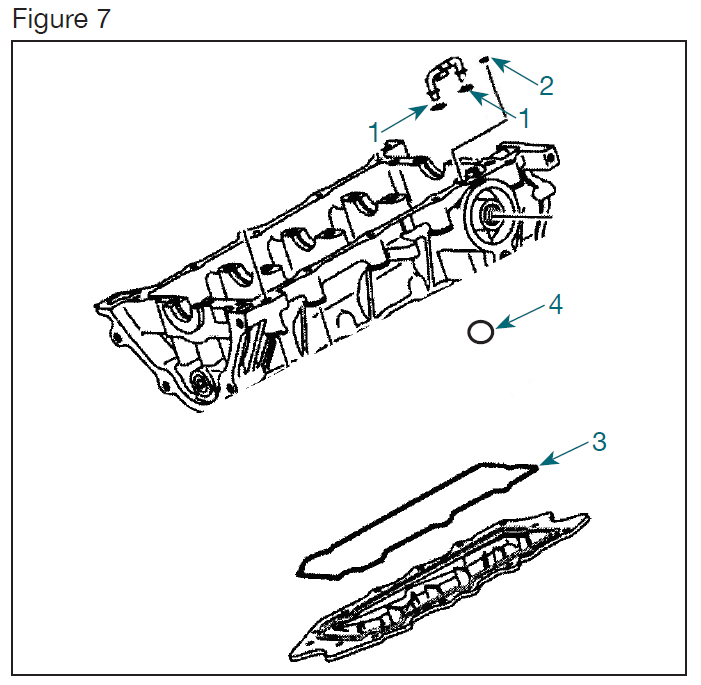

Original reference reference to selectdescription Figure No.Number on the imageRecommended quantity
93210-06667-00 008-683-19 Crankshaft Housing Ring 7 1 2
60E-13557-00-00 008-683-10 Oil Pan Trim 7 3 1
93210-17006-00 008-683-06 Crankshaft Housing Ring 7 4 1

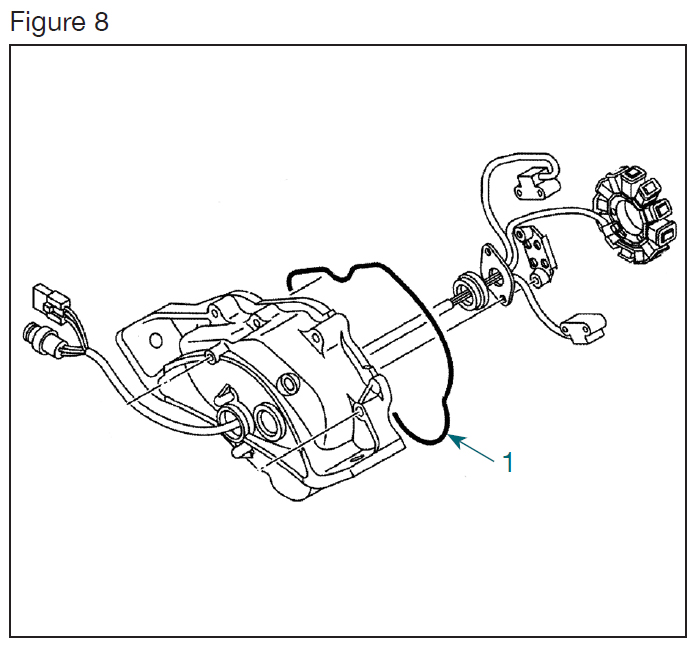

93212-04001-00 008-418-01 Generator Cover Trim 8 1 1
Original reference reference to selectdescription Figure No.Number on the imageRecommended quantity

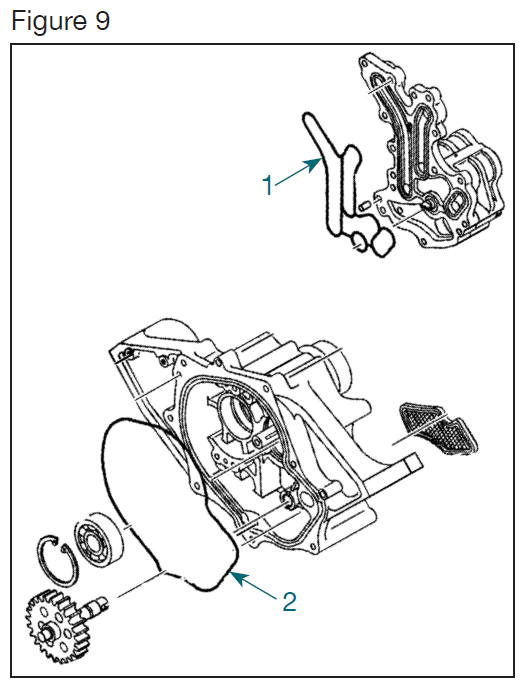

60E-13563-00-00 008-683-03 Oil Pump Ring 9 1 1
93211-95001-00 008-683-04 Oil Pump Ring 9 2 1

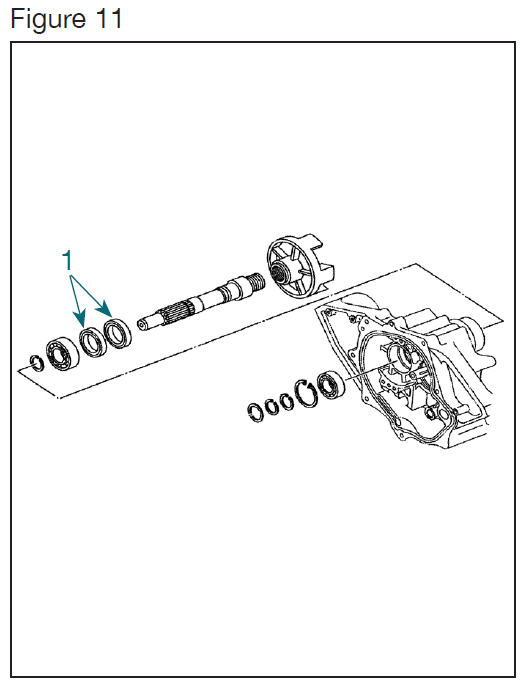

93101-35004-00 009-702-05J Seal 11 1 2
