Wideband Air/Fuel Sensor Module

Wideband air and fuel sensor module from PLX for Maptuner from RIVA Racing

Reference: 897346002726

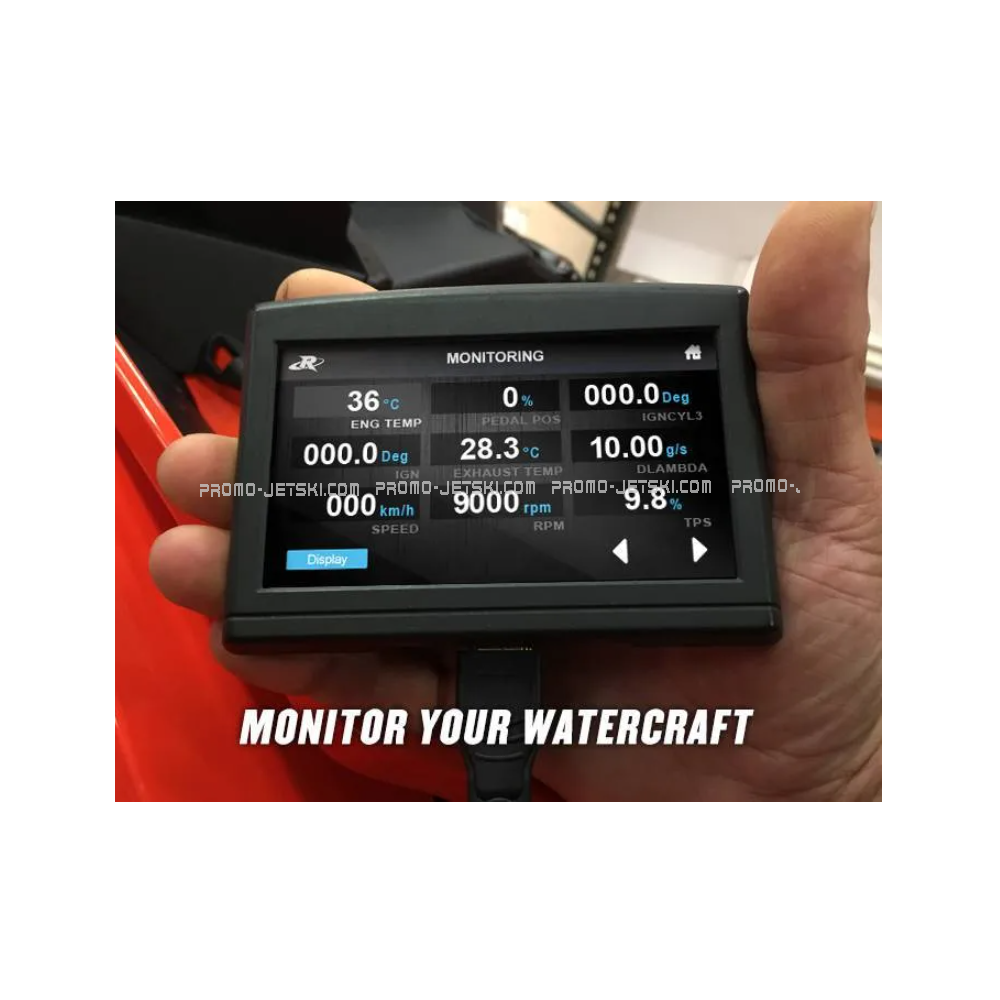

Next generation wideband oxygen sensor controller from PLX with intelligent health monitoring technology and current for improved sensor performance. The new Gen4 Wideband AFR uses the next generation of Bosch wideband air/fuel ratio sensor technology. Gen4 is faster, more precise, more durable and consumes less power than Gen3. The Gen4 also uses PLX Devices' innovative new smart health monitoring technology, where the oxygen sensor is meticulously monitored every 2 mS (488 times per second) to achieve optimal performance, accuracy and response time . Pair the SM/AFR with the patented DM-6 updated MultiGauge touchscreen, battery voltage is displayed from 9V to 20V, sensor life is displayed from 0 to 100%. The reaction time of the oxygen sensor is displayed from 10 mS/1000 mS on the bright, high-contrast OLED display.

The PLX Wideband AFR (UEGO) combines a precise, fast-response wideband AFR (Air Fuel Ratio) controller with a Bosch LSU4.9 wideband oxygen sensor. The wideband controller (SM-AFR) works with gasoline, biodiesel, ethanol, methanol, E85, LPG and CNG. It includes two analog outputs (wideband 0-5V and narrowband 0-1V) for interfacing with third-party devices and one digital serial output for interfacing with the DM-6 gauge and other multiple gauges. The wideband analog output is ideal for interfacing with aftermarket ECUs and data loggers. The narrow band output is ideal for replacement of the original narrow band oxygen sensor where the simulated narrow band analog output is fed back into your ECU to make it work as if the narrow band oxygen sensor of original was still installed when running the PLX broadband setup. All three outputs can be used simultaneously. Additional features include advanced soft start technology that extends oxygen sensor life.

Main characteristics:

New sensor: Bosch LSU 4.9
New sensor: O2 sensor health
New sensor: reaction time of the O2 sensor
New sensor: voltage
No calibration required
Soft start technology
2 analog outputs
1 digital input, 1 digital output
Compatible with multiple fuels
The sensor is tested by hand
Digital precision

Items included:

SM-AFR main unit
Bosch LSU 4.9 wideband sensor

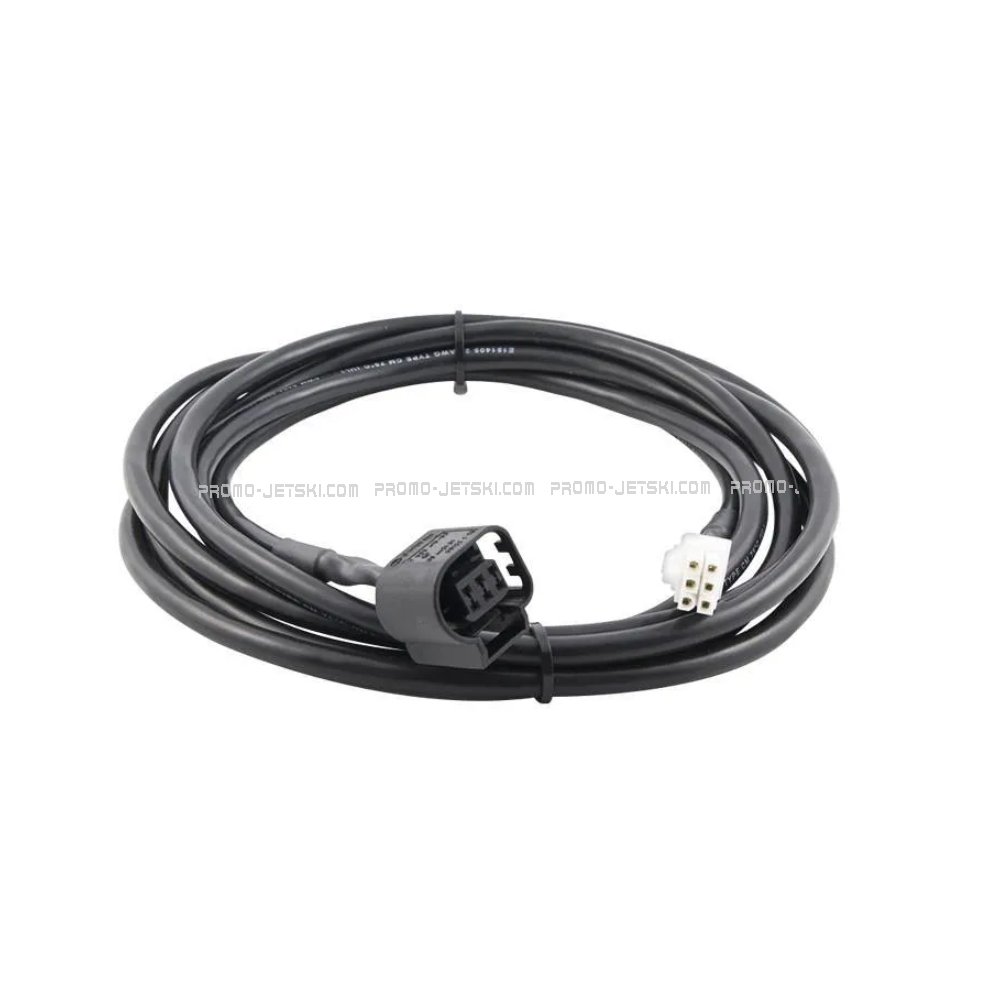

10ft O2 sensor harness

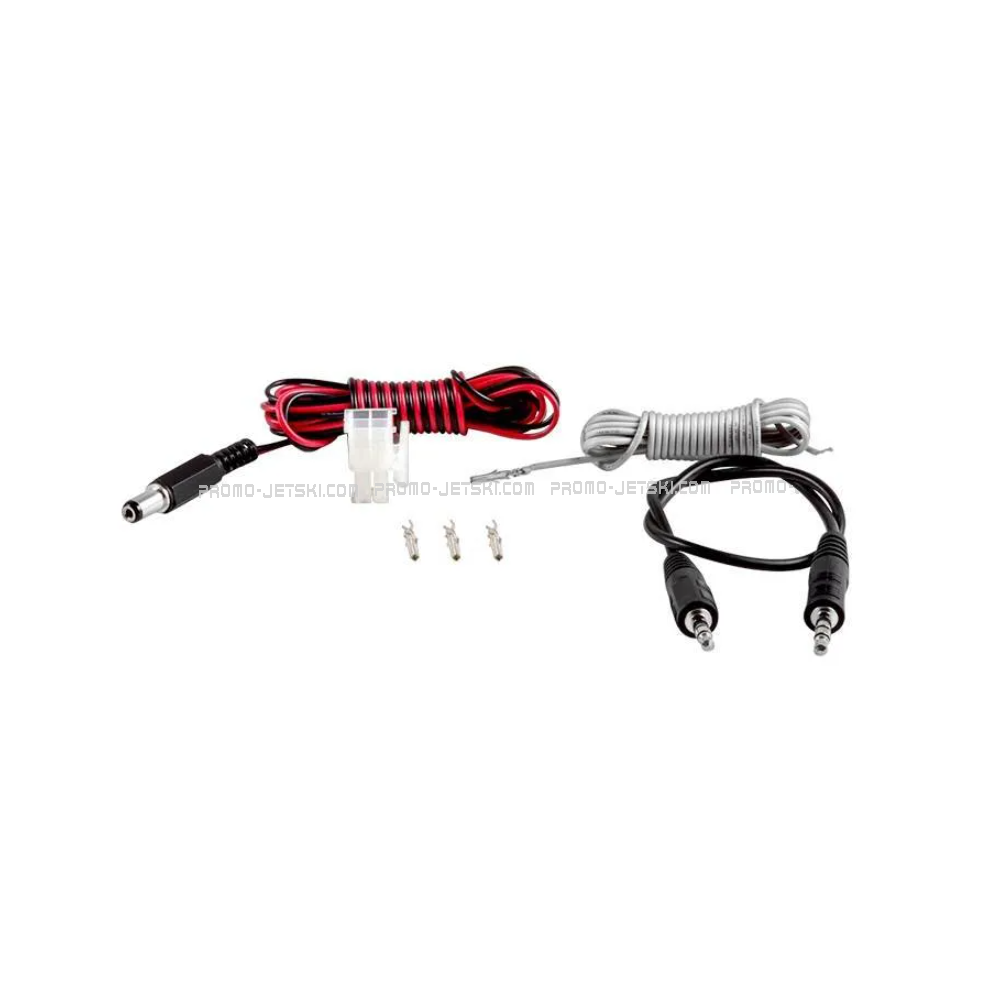

4ft power wire with 2.1mm connector
4 foot analog wires and connector with 4 terminals
1 foot serial cable
Termination jumper
User's Guide

Additional items required for installation and use:

All PWC: HDMI extension cable to connect to MaptunerX device (01-MT019/2)
Sea-Doo PWC: O2 Sensor Installation Kit (RS15050-SK-O2) or Exhaust Race Plate (RS18050-ERP)
Yamaha PWC: O2 Sensor Mounting Kit (RY15040-TP-O2)
